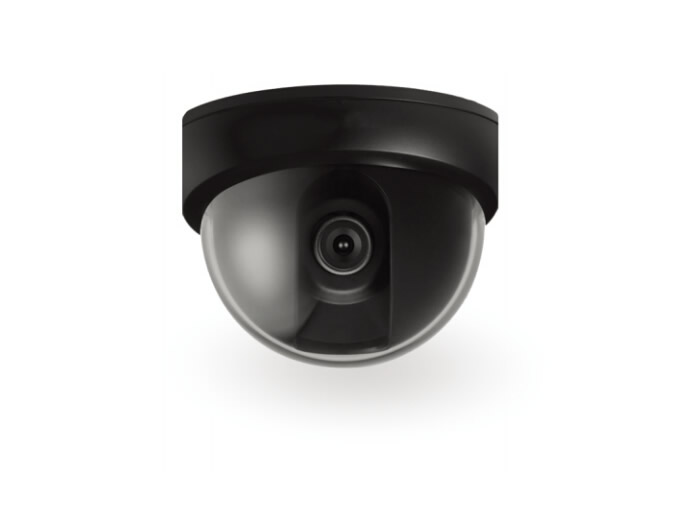

    • Dome Camera Series
    • Model:
    • FA-N
    • Applications:
    • Commercial/Residential
    • Print:
    • NA

    Series:

    • FC-N
    • FA-N
    • FB-N

    • Standalone 4-channel DVR
      Model:ARD-804
    • Street Lighting Sensor
      Model:HB-5808
    • Anti-masking Dual Technology Motion
      Model:SX-915AM
    • LED Tube Series-0.6m
      Model:T-810
    • Dual Frequency Infrared Motion Detector, DFIR™
      Model:DF-1010
    • Dual Tech Occupancy Sensor
      Model:CDL-608
    • Particular
    • For residential & commercial applications

      Features:
      ■ High-performance CCD.
      ■ High resolution,image clarity,detail.
      ■ Illumination as low as 0.01Lux.
      ■ Support for automatic color to black function.

      Products specifications:

      • Model
      • AR-2613FA-N
      • AR-2513FA-N
      • AR-2424FA-N
      • Camera
      •
      • Sensor type
      • 1/3 SONY CCD
      • 1/3 SONY CCD
      • 1/4 SHARP CCD
      • Light Sensitivity
      • 0.01Lux
      • Lens
      • 4-9mm,F1.6m
      • Shutter Time
      • PAL:1/50-1/100,000 NTSC:1/60-1/100,000
      • Video
      •
      • Video Format
      • NTSC
      • Resolutions
      • 600TVL
      • 540TVL
      • 420TVL
      • Resolutions
      • PAL:792*698;NTSC:768*694(H*V)
      • PAL:752*582;NTSC:768*494(H*V)
      • PAL:500*582;NTSC:512*492(H*V)
      • Video Output
      • 1Vp-p,75Ω
      • SNR
      • 〉50dB
      • 〉50dB(AGC OFF)
      • ≥48dB(AGC OFF)
      • Dynamic Width
      • 80DB
      • 60DB
      • 60DB
      • Synchronization system
      • Internal
      • Menu Functions
      • yes
      • General
      •
      • Power
      • DC12V/80mA
      • DC12V/80mA
      • DC12V/60mA
      • Operating Temperature
      • -10℃- +50℃ RH95% Max
      • Dimensions
      • Φ120mm
      • Included accessories
      • User’s Manual
